KT‑65

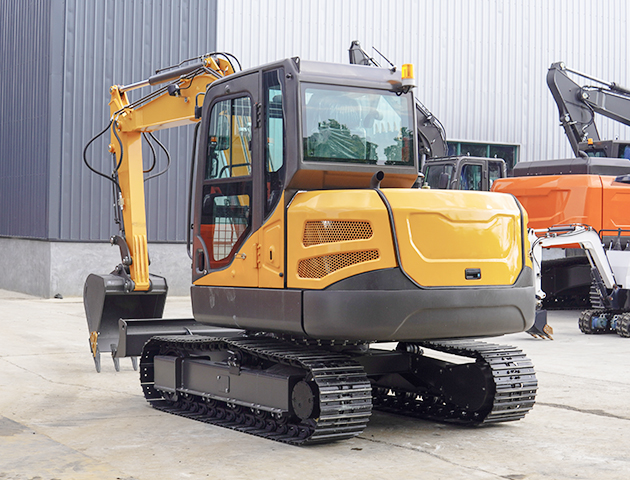

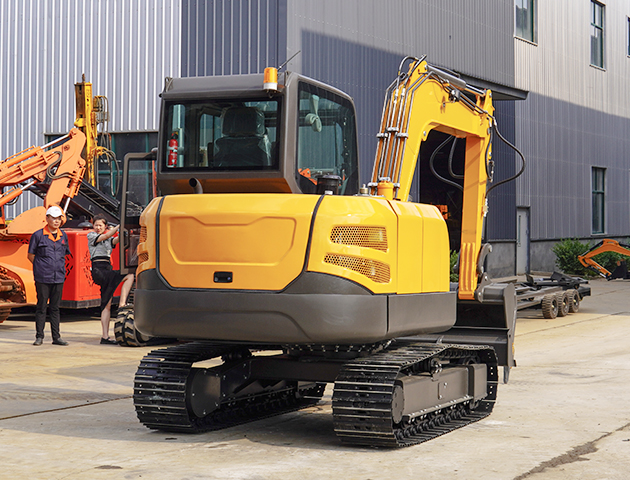

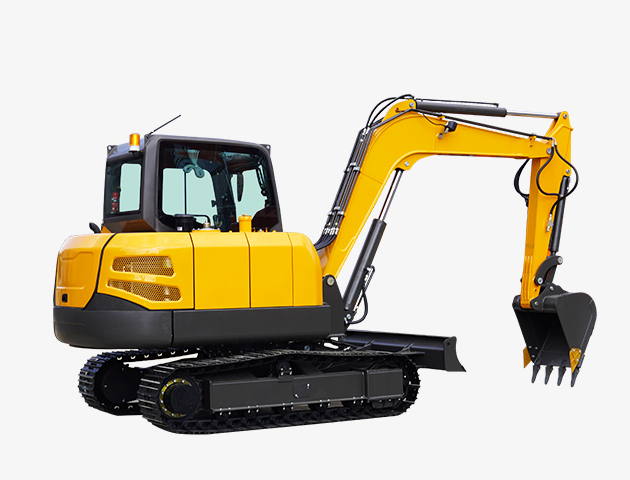

6.5Ton Compact Excavator

☑ kubota engine

☑ Rated power 58hp

☑ Large fuel tank, suitable for long working hours

Powering Progress, Sustaining the Planet

6500kg

Vehicle weight

58hp

Engine power

3808mm

Maximum Digging Depth

Core Components

Engine

Mini excavator engines are generally versatile and can be adapted to different working conditions.

Engineered Steel Tracks

The ground contact pressure of the steel track chassis is only 1/3 of that of wheeled vehicles. Combined with the bionic track pattern design, it can travel stably in extreme environments such as muddy swamps, snowy steep slopes, and gravel deserts avoid

Dozer blade

Mini excavator shovels can not only be used for leveling roads and backfilling operations, but the powerful bucket can cope with various complex terrains and material characteristics

Digging bucket

The mini excavator bucket has a compact design and is suitable for working in narrow spaces, such as urban alleys, indoor construction sites or orchard nurseries and other restricted environments

Features

Products you can trust.

Domestic famous brand engine, strong power, meets the requirements of efficient operation.

Precise matching design and advanced energy‑saving control make the machine consume less fuel.

Low emission, meet the national IV standard.

The adoption of new cooling fan and large muffler makes the noise of the machine lower;

Adopt advanced turbocharging technology to enhance the plateau adaptability of the machine;

The unique funnel‑shaped fan cover greatly improves the air intake of the engine and the cooling capacity of the system, ensuring continuous and efficient operation of the machine.

Integrate the latest research results, reduce energy consumption, improve design, and respond faster.

Double‑pump confluence technology: increase the flow of the main valve to supply the oil cylinders of the boom, stick and bucket, and improve the working speed.Rugged and high reliability

Improving the design of the cross‑sectional shape of the track frame, reducing soil accumulation, making the carrier sprocket less prone to wear and improving the durability of the machine.

Specs & Compare

Technical specifications for 6.5Ton Compact Excavator

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Vehicle weight	6500kg
Machine size	594018802570mm
Engine	Kubota V2607
Engine power	58hp
Maximum Digging Radius	6128mm
Maximum Digging Depth	3808mm
Maximum Digging Height	5499mm
Maximum dump height	3845mm
Minimum turning radius	2607mm
Chassis width	1880mm
