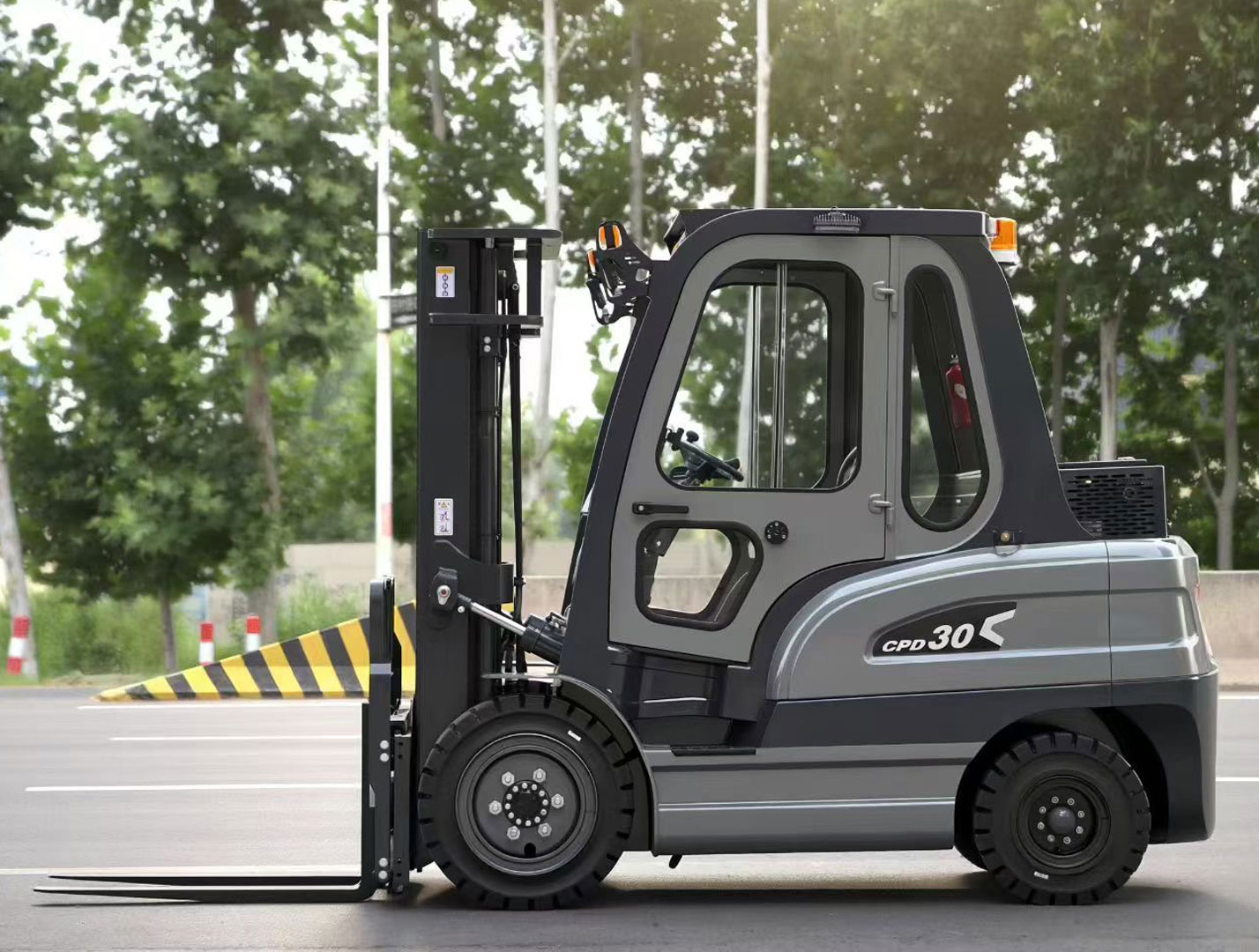

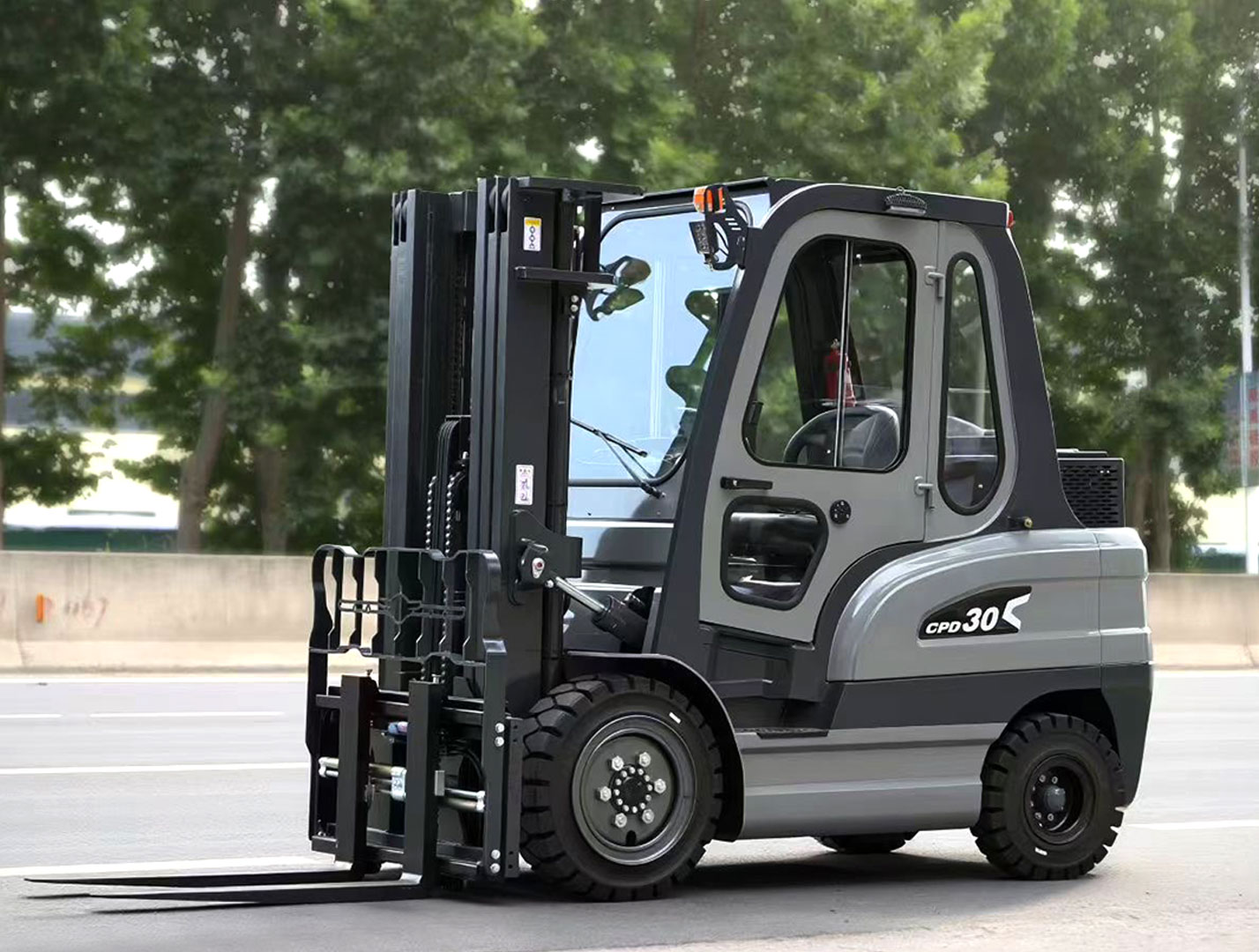

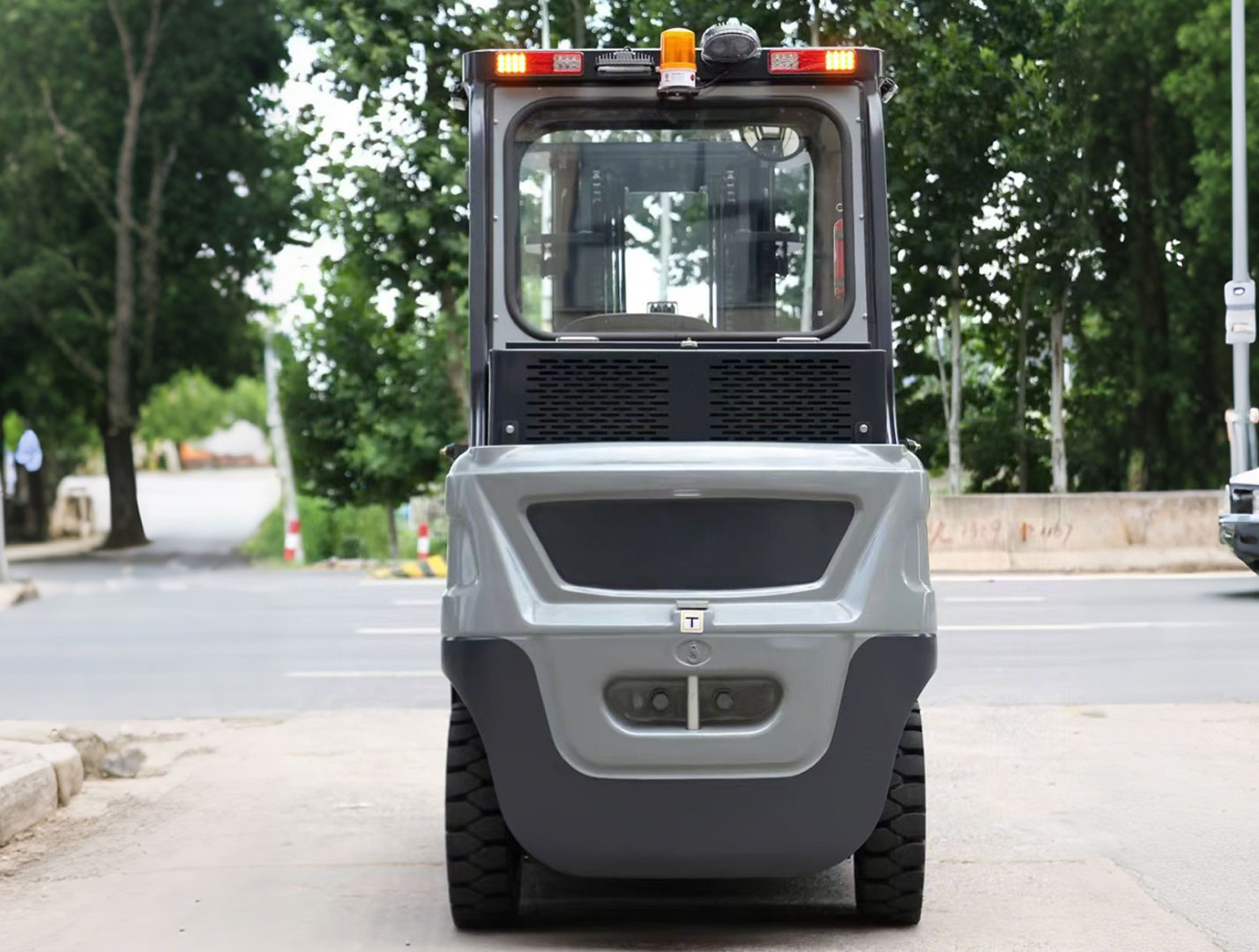

3Ton Electric Forklift

Main Options

☑ Wheelbase: 1600mm

☑ Mast inclination (front/rear): 35°

☑ Maximum grade: 20%

Powering Progress, Sustaining the Planet

3000kg Load capacity

2070mm Height (roof guard)

4 Wheel

Core Components

LED instrument panel

LED dashboard is a vehicle‑mounted device that replaces the traditional mechanical dashboard with an LED display screen, mainly used to dynamically display vehicle driving information.

Thickened fork

The fork is the most commonly used pickup device for forklifts, which is why the forklift is named so. A forklift is equipped with two forks shaped like the letter L. The horizontal section of the fork is the working part for placing the goods.

Increase body weight

Improved stability and safety, enhanced carrying capacity, more stable forklift operation, operators can control the forklift more precisely, especially in narrow or complex environments to better complete tasks.

Door frame

The forklift gantry is the inner and outer door frame of the forklift lifting mechanism. Its stability and load‑bearing capacity are crucial to the working efficiency and operational safety of the forklift.

Features

Products you can trust.

Using battery as power source, pure power, no pollution, meeting national environmental protection needs.

Thickened solid tires are wear‑resistant and non‑slip, have a long service life and are not easily damaged.

Turning has a speed reduction function to prevent overturning accidents caused by excessive turning speeds.

Equipped with advanced energy regeneration system, energy saving and high efficiency, strong endurance.

Special thickened steel, strong bearing capacity, not easy to deform real material.

Specs & Compare

Technical specifications for 3Ton Electric Forklift

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Load capacity	3000kg
Length (without forks)	2700mm
width	1200mm
Height (roof guard)	2070mm
Lifting height	3000mm(customizable)
No‑load maximum running speed (adjustable)	14km/h
Full load maximum operating speed (adjustable)	12km/h
Front Wheel Specifications	23×9‑10
rear wheel specification	18×7‑8
vehicle color	custom color
Wheel	4
