LED dashboard is a vehicle‑mounted device that replaces the traditional mechanical dashboard with an LED display screen, mainly used to dynamically display vehicle driving information.
The waterproof body design can ensure the safe operation of the electric forklift in harsh environments, reduce accidents caused by water intrusion, and improve operation safety. The fully sealed dustproof and waterproof gearbox and fully enclosed.
The fork is the most commonly used pickup device for forklifts, which is why the forklift is named so. A forklift is equipped with two forks shaped like the letter L. The horizontal section of the fork is the working part for placing the goods.

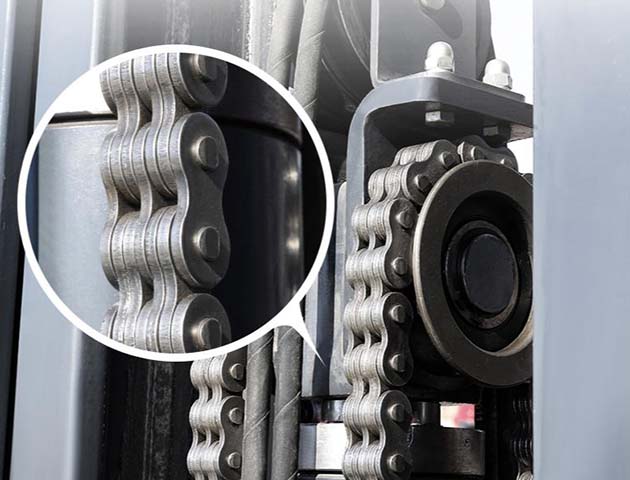

High‑strength chain is a kind of lifting equipment designed to withstand high loads and harsh working environments. Its main features are high strength, wear resistance and corrosion resistance
The center of gravity of the whole vehicle is lowered, and the high‑position carrying capacity is stronger than that of a forklift of the same tonnage. The high‑strength overall chassis structure greatly increases the durability of the forklift and prolon
Good stability, low center of gravity when turning.
It has the function of standing slope, low noise, flexible operation and low maintenance cost.
Equipped with a priority valve, in the case of insufficient power, it will give priority to action and steering when tilting, lifting and steering.
Using oil pump motor, mute large displacement gear pump, improve lifting speed and improve work efficiency.

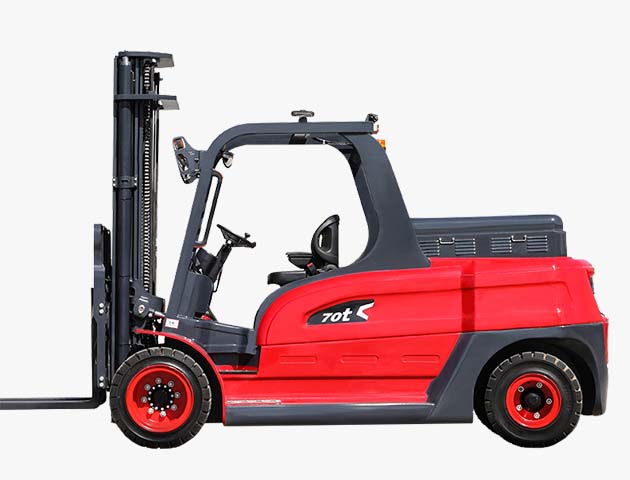

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Load capacity | 7000kg |
| Length (without forks) | 3600mm |
| width | 1860mm |
| Height (roof guard) | 2260mm |
| Lifting height | 3000mm(customizable) |
| No‑load maximum running speed (adjustable) | 15km/h |
| Full load maximum operating speed (adjustable) | 13km/h |
| Front Wheel Specifications | 28X9‑15 (X2) |
| rear wheel specification | 27X10‑12 |
| vehicle color | custom color |
| Wheel | 4 |
