The intelligent operating handle can significantly improve work efficiency and better adapt to complex and changing working environments and task requirements.
The forged fork is made of high‑strength material, which is forged at high temperature and precisely processed to have extremely high strength and durability. This material and process ensure that the forged fork can withstand heavy loads and frequent use
The design of the foot pedal makes the operator more comfortable when operating the stacker, reduces fatigue caused by standing for a long time, and improves the reliability and comfort of operation
High‑strength chain is a kind of lifting equipment designed to withstand high loads and harsh working environments. Its main features are high strength, wear resistance and corrosion resistance
Floating universal wheels left and right to ensure stable driving of the vehicle;
Italian ZaPI Ac0 controller, stable performance and precise control;
1.5KW AC brushless drive motor is powerful and maintenance‑free;
Widened and enlarged driving wheel with longer service life;

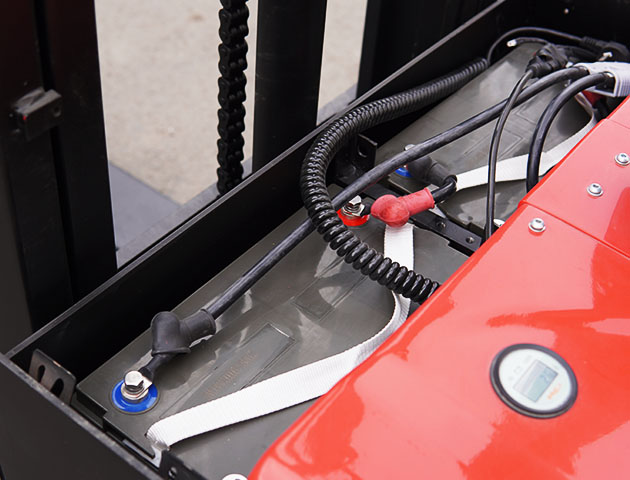

Standard 100Ah maintenance‑free battery, optional 210Ah battery, can meet different use time;
The vehicle has regenerative braking and slope protection against sliding down to ensure safe operation;
The one‑piece cover is easy to disassemble and assemble, and easy to maintain.
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Load capacity | 1500kg |
| Wheelbase | 1235mm |
| Overall Length | 1950/2415mm |
| Overall Width | 790mm |
| Lift Height | 3000mm |
| Lowered mast height | 2035mm |
| Fork Dimension | 1150×160×60mm |
| Ground Clearance at center of wheelbase (Min) | 30mm |
| Turning Radius | 1580/2010mm |
| Type of operation | Stand‑up |
