CPC 8.0‑10.0T

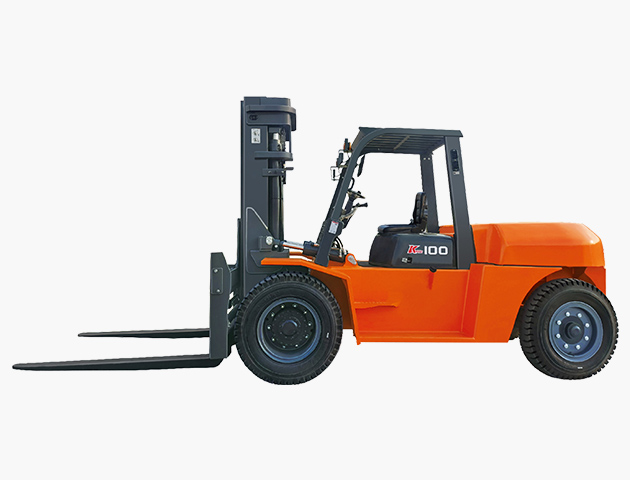

8.0‑10.0T Diesel forklift

☑ Ergonomically designed, more comfortable to operate

☑ Low noise, small vibration, energy saving and environmental protection, meeting emission requirements

☑ Advanced manufacturing technology and high‑quality parts ensure high reliability of the vehicle

8000‑10000kg

Load Capacity

6000mm

Max Lifting Height

10°

Mast Forward Tilt Angle

Operation console

The operating console includes important components such as operating levers, instrument panels and other core parts, which are used to control the forklift and display the vehicle's status and performance parameters and other core functions.

Engine

A compression ignition internal combustion engine that uses diesel as fuel is also called a diesel engine. Its working principle is to generate high temperature through compressed air to ignite atomized diesel, converting heat energy into mechanical energy.

Fork

The fork is the most commonly used pickup device for forklifts, which is why the forklift is named so. A forklift is equipped with two forks shaped like the letter L. The horizontal section of the fork is the working part for placing the goods.

Tire

It has good shock absorption effect, can reduce vibration and impact during driving, and improve driving comfort; it performs well under working conditions and is suitable for most working environments.

Features

Products you can trust.

Optimize the design of the air intake, exhaust, and cooling systems to effectively extend the service life of the engine and improve the reliability of the entire machine.

Reliable power system adopts reliable transmission system to reduce failure rate, and multiple power auxiliary devices ensure the working reliability of the system.

Reliable LCD digital special instrument and friendly human‑machine interface make it easy for the driver to accurately control the vehicle status

Adopting drum brakes and full‑wave pressure power braking, making the operation lighter, more comfortable and more reliable

Specs & Compare

Technical specifications for 8.0‑10.0T Diesel forklift

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Load Capacity	8000‑10000kg
Max Lifting Height	6000mm
Load Center Distance	600mm
Overall Length	5175‑5497mm
Over Width	2245mm
Over Height	2570mm
Mast Forward Tilt Angle	10°
Mast Tilted Backward	12°
Forklift Weight	11800‑12410kg
Min Turning Radius	3755‑4150mm
Max Working Speed	20/26km/h
