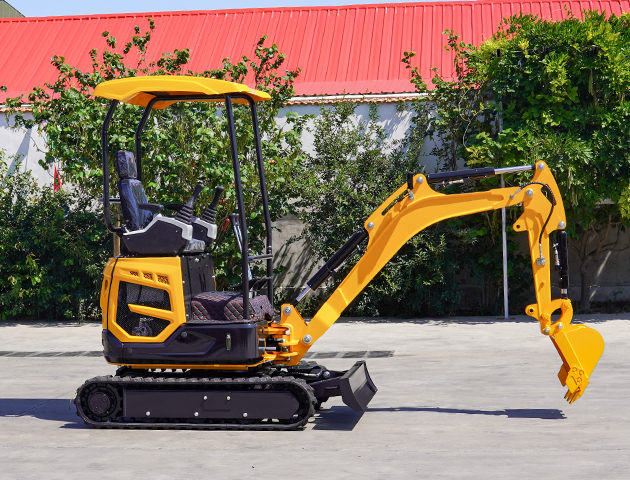

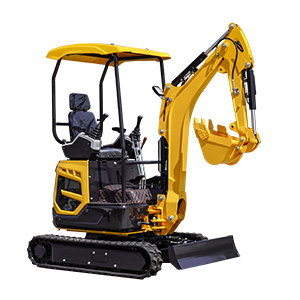

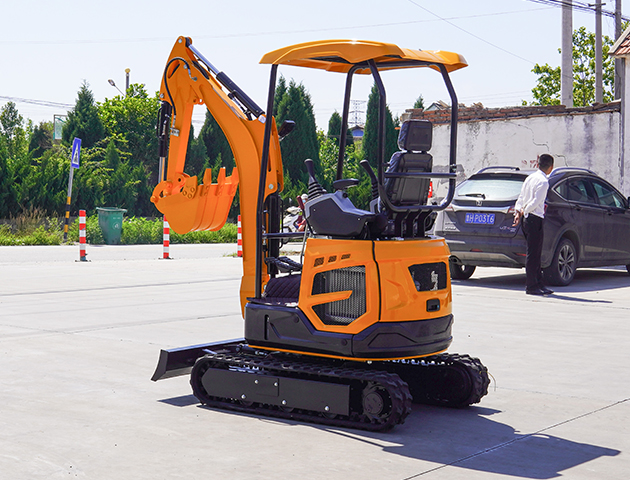

The whole machine has a compact structure and will not be limited by the size of the working space. It has a small turning radius and can easily enter a small space for operation. It is flexible and easy to operate, sensitive to operation, and has higher performance.
The built‑in motor usually adopts a high‑torque permanent magnet synchronous motor with an output efficiency of up to 95%, 30% lower energy consumption than the fuel version and 3% higher efficiency than the fuel version. This design enables the machine excellent performance.
Mini excavator shovels can not only be used for leveling roads and backfilling operations, but the powerful bucket can cope with various complex terrains and material characteristics.
The mini excavator bucket has a compact design and is suitable for working in narrow spaces, such as urban alleys, indoor construction sites or orchard nurseries and other restricted environments.
It adopts an internationally renowned brand engine, which meets the National IV emission standard, with large torque, strong power, energy saving and fuel saving.
The load sensing system realizes the perfect match between the engine and the main pump, provides accurate flow, improves operating efficiency, and saves fuel and time.
Integral reinforced chassis, robot welding, welding seam forming completely eliminates the influence of human factors,stable arc, controllable depth of penetration, beautiful forming.
High‑end configuration, using international famous brand hydraulic components to ensure high reliability of the hydraulic system.
Products are widely used in indoor demolition,orchard planting, municipal engineering, greenhouses, land reclamation, nursery trenching and fertilization,pipelines, basement renovation,underground operations,etc.
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Vehicle weight | 1800kg |
| Machine size | 2400*1150*2200mm |
| Engine | Changchai 390 |
| Engine power | 29hp |
| Maximum Digging Radius | 2500mm |
| Maximum Digging Depth | 2150mm |
| Maximum Digging Height | 2900mm |
| Maximum dump height | 2200mm |
| Minimum turning radius | 1610mm |
| Chassis width | 1150mm |
